RYNAN AQ-VibrioKit
Discover the cutting-edge RYNAN AQ-VibrioKit, an advanced solution meticulously engineered to isolate, detect and quantify Vibrio spp., encompassing V. parahaemolyticus, V. alginolyticus, V. owensii and other groups of aquatic micro-organisms.
Why RYNAN AQ-VibrioKit?
Specially Formulated Agar Dish
Comprehensive Detection
The kit utilizes specialized agar dishes for accurate detection of diverse Vibrio bacteria in shrimp ponds, enhancing accuracy and reliability.
Specifically designed to isolate, detect, and quantify vibrio. This provides users with thorough bacteria analysis in shrimp ponds for informed decision-making.
Disease Management Recommendations
Rapid Results in 24-Hours
The TOMGOXY app provides data-driven insights and facilitates appropriate management protocols based on the analysis results, ensuring precise and effective disease management.
Results are delivered within 24 hours, enabling prompt decision-making and disease management for shrimp aquaculture productivity.
RYNAN AQ-VibrioKit: Frequently Asked Questions
-
The RYNAN AQ-VibrioKit is an on-site bacterial monitoring system designed to estimate Vibrio spp. levels in shrimp pond water.

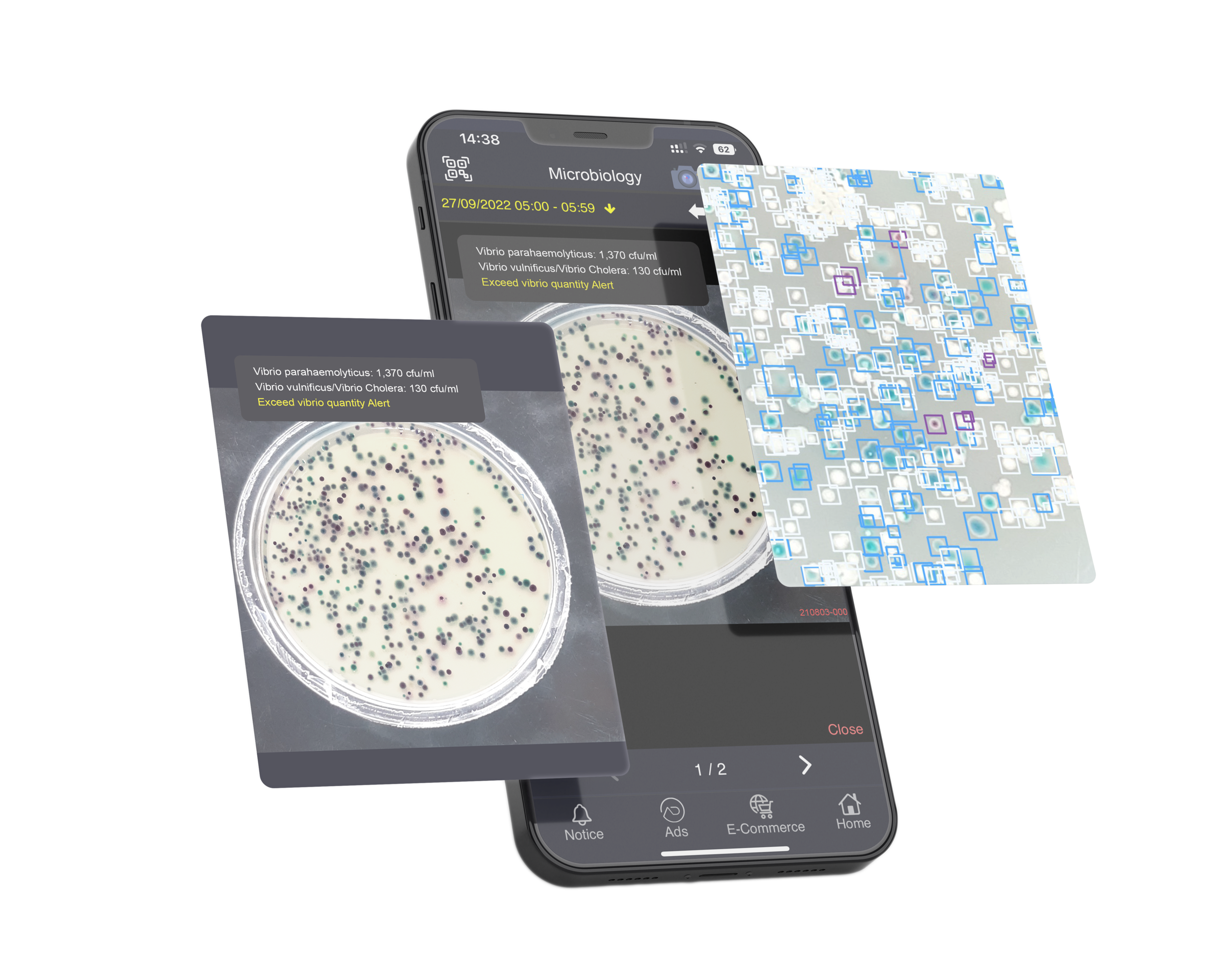

The user injects 0.1 ml of pond water onto a prepared agar plate and incubates it at room temperature in a dark environment for approximately 24 hours. After incubation, the plate is scanned using the TOMGOXY® app, which analyzes colony growth and estimates CFU (Colony Forming Units) within seconds.
The system provides structured, digital bacterial monitoring directly at the farm level
-
External laboratory testing typically requires 2–3 days due to sample transport and processing time.
The RYNAN AQ-Vibrio Kit provides pond-level bacterial estimation within 24 hours, reducing response time in intensive shrimp farming operations.
By shortening the feedback loop, farm operators can review bacterial trends earlier and make informed water management adjustments when necessary.
The system is intended for monitoring and risk assessment; confirmatory laboratory diagnostics may still be required depending on farm protocols.
-
Routine monitoring is generally recommended on a weekly basis, or according to farm standard operating procedures (e.g., day 0 and weekly intervals).
If bacterial density exceeds predefined thresholds (e.g., >10³ CFU/ml), the TOMGOXY® app issues a notification indicating elevated bacterial levels.
The data supports early review of pond management practices, such as water treatment strategy, probiotic application, or environmental adjustments.
The RYNAN AQ-Vibrio Kit is a monitoring tool and does not replace veterinary diagnostics or disease confirmation testing.
RYNAN AQ-VibrioKit Instructions Of Use
Sample:
Sample volume:
Incubation:
Open the TOMGOXY® app, navigate to “Microbes,” and use the camera to scan the QR code on the RYNAN® AQ VibrioKit agar disc
Step 1:
Draw 0.1 ml of water from the shrimp pond using the provided syringe, then inject the sample into the center of the agar disc
Step 2:
Step 3:
Gently rotate and tilt the disc to ensure the water sample is evenly distributed
Step 4:
Incubate the agar disc at 26–28°C for 24–48 hours in a dark environment. Avoid exposure to light.
Step 5:
Step 6:
Shrimp pond water
0.1 mL
26–28°C, 24–48 hours
Remove the protective film. Use the TOMGOXY® app's camera to scan the disc for 1-5 seconds
View the results and follow the system’s alerts or recommendations for further action
RYNAN AQ-VibrioKit Test Specification
Quantifiable range:
LOD:
Operational alert threshold:
5–250 CFU/plate
5 × 10¹ CFU/mL
10² CFU/mL
TOMGOXY APP
Discover how RYNAN Aquaculture TOMGOXY Application empowers users with precise shrimp farming capabilities, and comprehensive data accessibility at their fingertips.
